Model |
Wire(mm2) |
Amp |
Volt |
Screw |

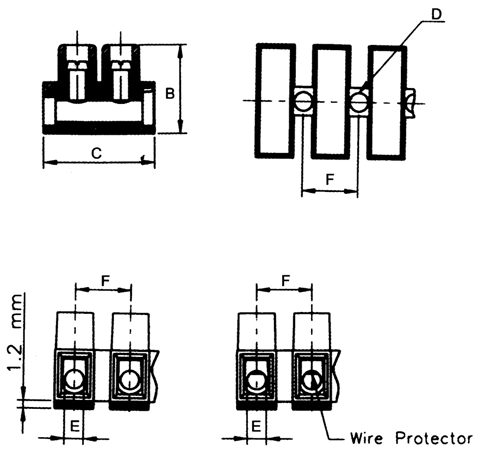

Dimenslone(mm/in.) |
|
Unit |
A |
B |
C |
F |
D |
E |
|
8HP-0 |
1.5 |
17.5A |
450V |
M2.6X5 |
(mm) |
96.0 |
17.8 |
14.30 |
8.20 |
3.00 |
2.80 |
|
10HP-0 |
2.5 |
24A |
450V |
M3.0X6 |
(mm) |
116.5 |
20.0 |
15.50 |
10.00 |
3.50 |
3.30 |
|
12HP-0 |
6.0 |
41A |
750V |
M3.5X7 |
(mm) |
140.7 |
23.80 |
17.80 |
12.00 |
3.90 |
3.90 |
|
14HP-0 |
10.0 |
57A |
750V |
M4X9 |
(mm) |
158.0 |
25.60 |
24.00 |
13.50 |
4.40 |
4.80 |
|
16HP-0 |
16.0 |
76A |
750V |
M4X9 |
(mm) |
169.8 |
28.00 |
21.80 |
14.50 |
4.20 |
6.00 |
|
18HP-0 |
25.0 |
101A |
750V |
M5X11 |
(mm) |
194.4 |
36.90 |
27.50 |
16.50 |
4.20 |
7.50 |
Descrption:
◆ houseing material：Nylon66；
◆ Base: Flat-bottom；
◆ poles available: 12poles；
◆ fire rating: UL94V2,Natural；
◆ working temperature：110℃ or 150℃； |
