• Foot-tap spring actuation

• For wiring ferruled 2x or 3x
  0.75mm², SPT-1 or SPT-2 cables

• Impact protection

• Additional wiring terminal available

• counter-turnover design

• Wire-release by screw-driver tapping

• Colors - black, white, gold and transparent

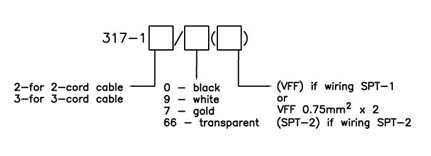

Size Chart...

Details...

	Technical Data Housing polycarbonate 94V-2 grade Metal parts switch core terminal stainless steel spring / nickel-plated brass optional wiring terminal zinc-plated terminal screws / nickel-plated brass Terminal insert brass / M3 zinc-plated terminal screws Voltage / Ampere (IEC) 250V / 2A [2A] Voltage / Ampere (UL) 120V / 3A Temperature working -40oC to 120oC short time 140oC
