| Name:Push-In Wire Connectors |
| item: |
| Type:Wire Connectors |
| |
|
|
|
| Introduction： |
|
|
- Housing Material: UL 94V-2 flame-retardant thermoplastic.

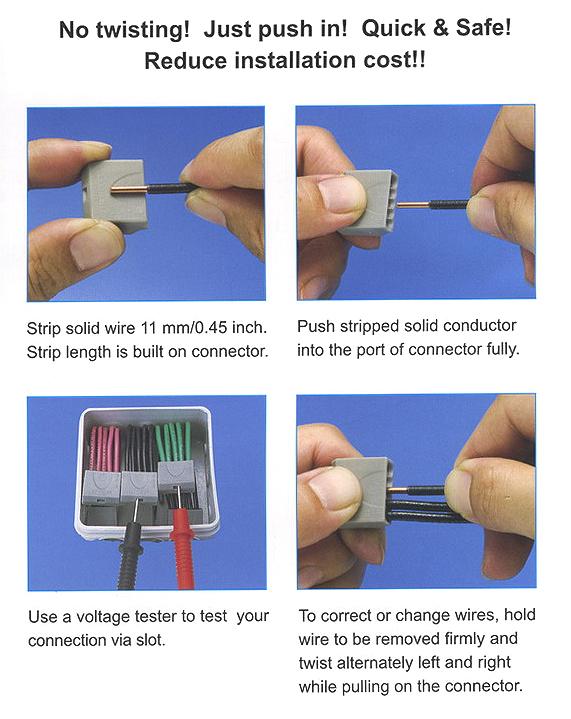

- Stripping Length: Approx. 11mm/0.45 inch.
- Rated 600V Max. for building wiring and 1000V Max. in lighting fixtures/ luminaries and signs.
- Color coded for easy identification.
- Fast, safe and reliable installation for saving time and cost.
- Compact size design perfect for tight spaces.
- Special packing and private labelling are available upon request
- UL 94V-0 flame-retardant thermoplastic for transparent body is available.
|
| |
|
| |
|
| |
|
Part No. |
Poles
|
Color |
Wire Range & Ratings |
Packing
|
|
PC252 |
2 |
Red |
UL：600V , 105∑C (221∑F) 22-12 Cu , Sol AWG
VDE：24A , 450V , T110∑C 1.0-2.5 mm , Sol |
500 Pcs/Bag
5 , 000 Pcs/Ctn |
|
PC253 |
3 |
Orange |
UL：600V , 105∑C (221∑F) 22-12 Cu , Sol AWG
VDE：24A , 450V , T110∑C 1.0-2.5 mm , Sol |
500 Pcs/Bag
5 , 000 Pcs/Ctn |
|
PC254 |
4 |
Yellow
|
UL：600V , 105∑C (221∑F) 22-12 Cu , Sol AWG
VDE：24A , 450V , T110∑C 1.0-2.5 mm , Sol |
500 Pcs/Bag
5 , 000 Pcs/Ctn |
|
PC255 |
5 |
Grey |
UL：600V , 105∑C (221∑F) 22-12 Cu , Sol AWG
VDE：24A , 450V , T110∑C 1.0-2.5 mm , Sol |
500 Pcs/Bag
5 , 000 Pcs/Ctn |
|
PC258 |
8 |
Black |
UL：600V , 105∑C (221∑F) 22-12 Cu , Sol AWG
VDE：24A , 450V , T110∑C 1.0-2.5 mm , Sol |
250 Pcs/Bag
2 , 500 Pcs/Ctn |  | | |
|
