HIGH FOOT WITH OR WITHOUT WIRE PROTECTOR
Name:HIGH FOOT WITH OR WITHOUT WIRE PROTECTOR
item:
Type:Terminal block

  Introduction：

  • High foot

  • Brass insert

  • 0.5-16mm2 wire range

  • Polyamide 6/6 94V-2 grade

  • Available with or without wire protection

  • Temperature

    working -40oC to 100oC

    short time 140oC

  • Natural color as standard

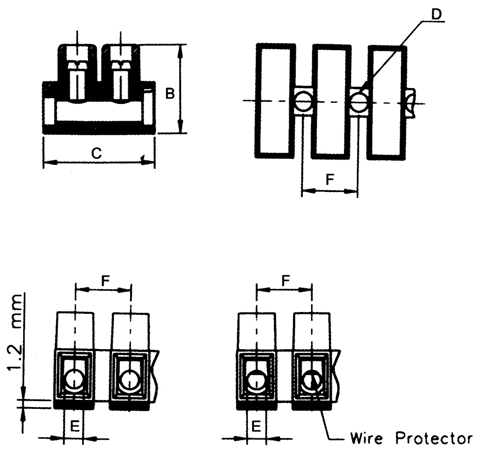

Size Chart...
 Details...
Model
m㎡
Amp
Volt
Screw
Dimensions
Packing
Unit
A
B
C
D
E
F
CA10HT
4
10
450
M3X6
（mm）
116.5
20.2
20
3.5
3.45
10
50PCS/BOX
10boxes/carton
CA10HTWP
4
10
450
M3X6
（mm）
116.5
20.2
20
3.5
3.45
10
