• Terminal strip with fuse-carrier

• Dovetail for different terminal combinations

• For 5x20 mm fuse

• Earth-screw option


• IP 20 finger protection

• Anti-rotation spigot as option

• 1,2,3,4 and 5 poles available

• Color -housing in grey, fuse carrier in black

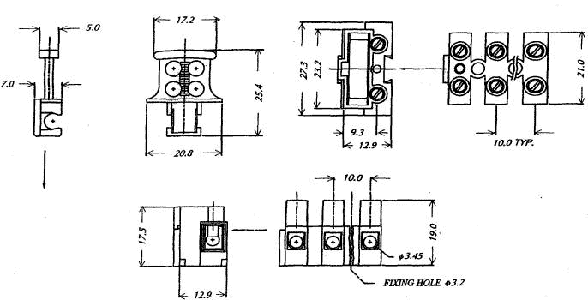

Size Chart...

Details...

Technical Data Housing Polyamide 6/6 94V-2 grade Insert brass, nickel plated Wire protector stainless steel Screw M3x6, yellow chromated Earth screw M3x14, yellow chromated Voltage / Ampere (IEC) terminal strip 400V / 15A fuse carrier 250V / 6.3A Voltage / Ampere (UL) terminal strip 200V / 15A fuse carrier 200V / 10A Temperature working -40oC to 100oC short period 140oC Cross section 2.5mm2 AWG 14 Packing 540-1WP 100x10 per ctn 540-2WP 70x10 per ctn 540-3WP / 3GWP 50x10 per ctn 540-4WP / 4GWP 40x10 per ctn 540-5WP / 5GWP 40x10 per ctn
