• High grade flexible strips

• Raised base

• 2 to 12 pole available

• Male and female strips as one set

• Pluggable connector with excellent electrical contact

• Vertical / horizontal mounting

• Natural color as stand

Size Chart...

Details...

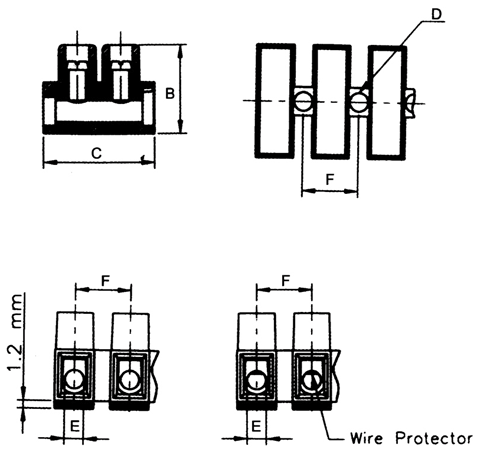

Model Wire(mm2) Amp Volt Screw Dimenslone(mm/in.) Unit A B C F D E 8HP-0 1.5 17.5A 450V M2.6X5 (mm) 96.0 17.8 14.30 8.20 3.00 2.80 10HP-0 2.5 24A 450V M3.0X6 (mm) 116.5 20.0 15.50 10.00 3.50 3.30 12HP-0 6.0 41A 750V M3.5X7 (mm) 140.7 23.80 17.80 12.00 3.90 3.90 14HP-0 10.0 57A 750V M4X9 (mm) 158.0 25.60 24.00 13.50 4.40 4.80 16HP-0 16.0 76A 750V M4X9 (mm) 169.8 28.00 21.80 14.50 4.20 6.00 18HP-0 25.0 101A 750V M5X11 (mm) 194.4 36.90 27.50 16.50 4.20 7.50 Descrption: ◆ houseing material：Nylon66； ◆ Base: Flat-bottom； ◆ poles available: 12poles； ◆ fire rating: UL94V2,Natural； ◆ working temperature：110℃ or 150℃；
