Products
Fuse Terminals
Name:Fuse Terminals
item:
Type:Terminal block

  Introduction：

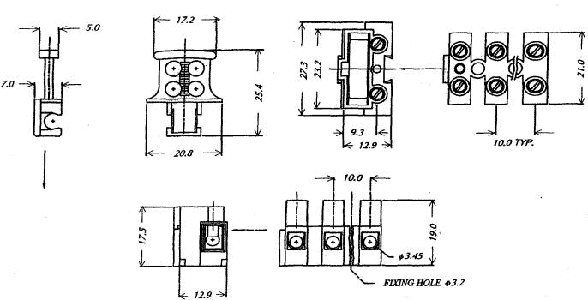

Size Chart...




 Details...



Technical Data
Housing Polyamide 6/6
  94V-2 grade
Insert brass, nickel plated
Wire protector stainless steel
Screw M3x6, yellow chromated
Earth screw M3x14, yellow chromated
Voltage / Ampere (IEC)
  terminal strip 400V / 15A
  fuse carrier 250V / 6.3A
Voltage / Ampere (UL)
  terminal strip

200V / 15A

  fuse carrier

200V / 10A

Temperature
  working -40oC to 100oC
  short period 140oC
Cross section 2.5mm2
AWG 14

Packing
540-1WP 100x10 per ctn
540-2WP 70x10 per ctn
540-3WP / 3GWP 50x10 per ctn
540-4WP / 4GWP 40x10 per ctn
540-5WP / 5GWP 40x10 per ctn
