BS Fused Terminal - screwless wire clamp FTB1.4.11 FTC2,11series
Name:BS Fused Terminal - screwless wire clamp FTB1.4.11 FTC2,11series
item:
Type:Terminal block

  Introduction：

  • Terminal strip with fuse-holder

  • In compliance with BS-EN 60598-1

  • For 6 x 25mm fuse

  • With or Without earth screw

  • Choice of mounting base / leg anti-rotation spigot

  • Standard color -white

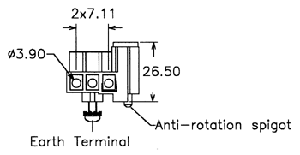

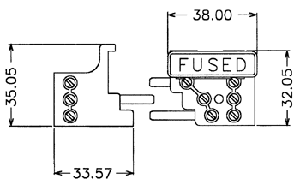

 Size Chart...

 Details...

Technical Data
Housing Polycarbonate
94V-2 grade
Insert brass
Terminal screw M3.5 x 7.5 zinc-plated steel
Earth screw M3.5 x 12 zinc-plated steel
Voltage / Ampere 250V / 13A
Temperature
working -20oC to 120oC
short time 160oC
Cross section 0.75 - 2.5mm2
AWG 20-14 (with wire protector)
Packing
FTB 1 4 11 500pcs per ctn.
FTC 2 11 300pcs per ctn.
